Flux

Movable Concrete Barrier

Industry

Automative

Project Size

14,000 SF

Location

Toronto, Ontario

Testing

MASH tests 3-20 and 3-21

Project Overview

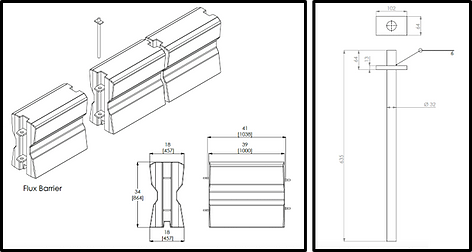

Flux Barrier are constructed of precast concrete with steel reinforcement. Each unit measures 1000mm long, 864mm tall, and 457mm wide at the base. Two connecting pin hinge bars are integrally cast in, and continuous through each segment. Each bar was bent to offset by approximately 25mm such that the upstream bar ends nested between the downstream ends on the adjacent segment. Barriers segments are connected to one another with a 32mm x 635mm steel hinge pin. No bolts, pins, or adhesives are utilized to secure the barrier to road base.

The Details

TTI Report Number – 690902 – PCL4&5

Title – “MASH TL-3 Evaluation of the Flux Barrier”

FHWA Letter – B-325

The Blueprint

Take a peek behind the scenes

MQR Bikes

Commercial photography

Poetry Moves

Arty projects

Crash Test Performed

It is all about the details

MASH TL-3 Standards

A 1100kg small car impacting the CIP and LON of the barrier at a nominal speed and angle of 100km/hr and 25 degrees, respectively. This test investigates a barrier’s ability to successfully contain and redirect small cars. The Flux barrier performed acceptably for MASH TL-3 longitudinal barriers.

  • Speed: 100 km/hr
  • Angle: 25 Degrees
  • Vehicle Weight: 1100 kg
  • Result: Pass

A 2270kg pickup truck impacting the CIP and LON of the barrier at a nominal speed and angle of 100km/hr and 25 degrees, respectively. This test investigates a barrier’s ability to successfully contain and redirect light trucks and sport utility vehicles. The Flux barrier performed acceptably for MASH TL-3 longitudinal barriers.

EN1317 Standards

A 1100kg small car impacting the CIP and LON of the barrier at a nominal speed and angle of 100km/hr and 25 degrees, respectively. This test investigates a barrier’s ability to successfully contain and redirect small cars. The Flux barrier performed acceptably for MASH TL-3 longitudinal barriers.

A 2270kg pickup truck impacting the CIP and LON of the barrier at a nominal speed and angle of 100km/hr and 25 degrees, respectively. This test investigates a barrier’s ability to successfully contain and redirect light trucks and sport utility vehicles. The Flux barrier performed acceptably for MASH TL-3 longitudinal barriers.
